Herkunftsort China
Markenname SUNTEX
Modellnummer GF431P-NE245-4005
Min Bestellmenge 20 Rollen
Verpackung Informationen Jede Rolle in einem Karton, mehrere Kartons in einer Palette
Lieferzeit 5 bis 20 Tage
Zahlungsbedingungen T/T; L/C, Paypal…
Versorgungsmaterial-Fähigkeit 500000sqm/month

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Temperaturbeständigkeit -50 C vom Grad zu 550 c-Grad Gewicht 600 G/M2
Dicke 0,45 Millimeter Beschichtung Neoprengummi auf Seite 2
Breite 1,5 Meter oder Schnitt in kundengebundene Größe Farbe Schwarz
Rollenlänge 50 Meter Hauptmarkt Mittlerer Osten
Gebrauch Dehnfuge/flexibles Rohr
Hervorheben

Temperature Resistance Fabric

,

Against Abrasion Temperature Resistance Fabric
Hinterlass eine Nachricht
Produkt-Beschreibung

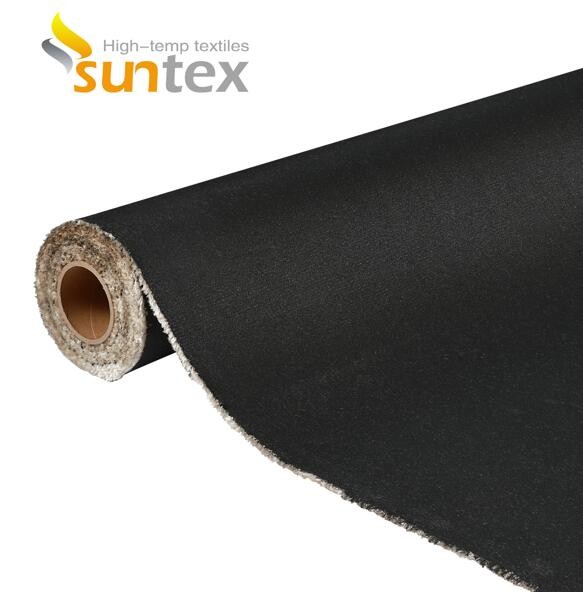

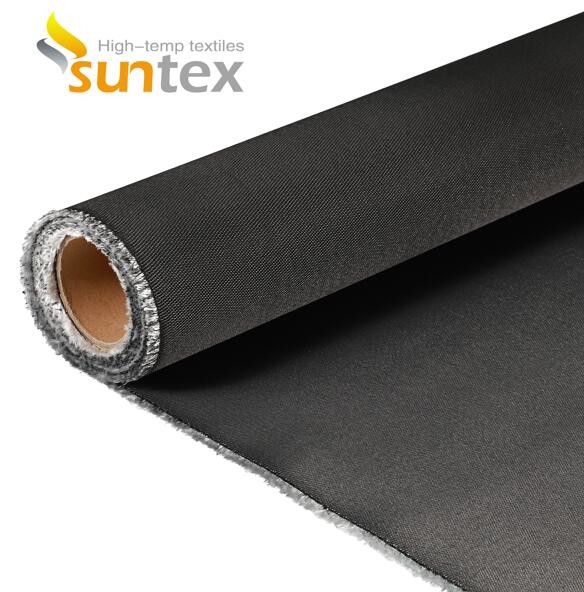

Black Expansion Joint Pipe Fabrics Neoprene Glass Fabre Fabric 600 g



Description:



GF431P-NE245-4005 is a medium weight fiberglass fabric coated with a high quality, fire retardant neoprene rubber. This product is designed for the manufacture of removable, reusable insulation pads, jacket and mattresses. The material is soft and pliable and easy to sew.



This product is particularly suitable for the manufacture of compensators and expansion covers



Fabric bellows are extremely flexible and can be made from a variety of special woven fabrics coated or laminated with selected elastomers or fluoropolymers. Fabric expansion joints are used to insulate, to avoid mechanical loads and to protect against abrasion. They offer advantages for the pipe work designer as they can absorb movements simultaneously in several directions. Further, they have almost no reactive forces and require little space. Fabric expansion joints are easy to customise to suit existing operating conditions and are easy to transport and install. In comparison to metallic expansion joints fabric offers almost unlimited flexibility, giving the pipe work designer more options.
Fabric expansion joints are installed in systems operating with low pressure and dry media.





Parameter List:



BASE FABRIC Base fabric style No. GF431P
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96

COATED FABRIC Coating style No. NE245-4005
Coating Neoprene rubber , two sides
Weight 600 ± 30 g/m2 17.35 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.47 ± 0.02 mm 0.019 ± 0.0008 inch ASTM D1777-96
Color Black
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Neoprene rubber coating up to 1500C (3600F)



Typical Applications:



Air condition systems

Flexible Connector

Expansion Joint Ducts

Insulation Sleeves

Fabric Shield



Advantage:



- Abbrasion resistant

- Fiberglass cloth is good and fire resistant against hear material, used as heat insulation, electrical insulation materials and also made into other products. It with metallic can extensively apply to friction materials.

- Competitive prices based on same quality because we are manufacture and has our own factory

- Guarantee samples quality same as mass production quality

- Fiberglass Yarn is the excellent substitute for asbestos.Temperature Resistance Fabric Expansion Joints To Avoid Mechanical Loads To Protect Against Abrasion 0
