0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth

  • 0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth
  • 0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth
  • 0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth
  • 0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth
  • 0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth
  • 0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth
  • 0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth
  • 0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth
Herkunftsort CHINA
Markenname SUNTEX
Modellnummer GF200P-SI243-1053
Min Bestellmenge 20 Rollen
Verpackung Informationen Jede Rolle in einem Karton, mehrere Kartons in einer Palette
Lieferzeit 5-20 Tage
Zahlungsbedingungen T/t; L/c, paypal ...
Versorgungsmaterial-Fähigkeit 500000sqm/month

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

- Was ist?:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Temperaturwiderstand -50 c-Grad zu 500 c-Grad Gewicht 400 g/m2
Dicke 00,3 mm Beschichtung Silikonkautschuk
Breite 1 / 1,2/1,5 Meter Alkali-Gehalt Alkali frei
Farbe Grau Rolllänge 50 m / 100 m
Hervorheben

silicone coated fiberglass heat insulation

,

thermal silicone rubber fabric cloth

,

e-glass fiberglass insulation material
Hinterlass eine Nachricht
Produkt-Beschreibung

Grey Color Double Sided Silicone Coated Glass Fabric Insulation , Fire Retardant Curtain Fabric



Product Description

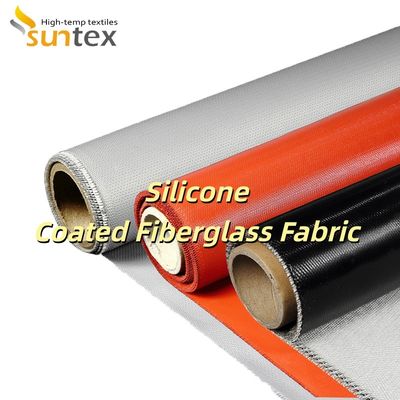

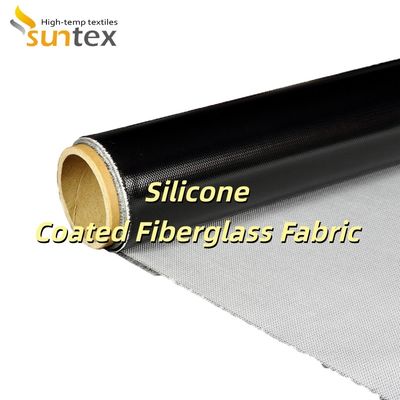

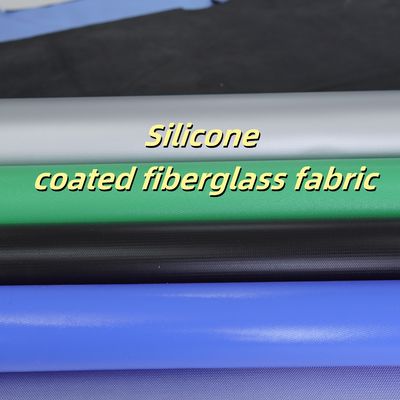

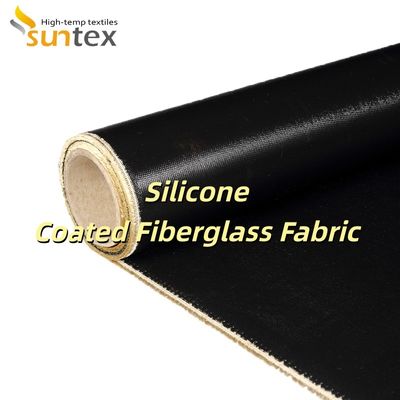

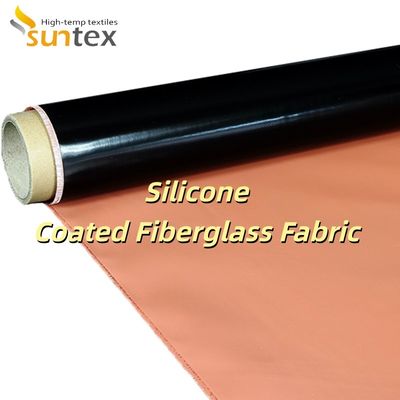

Silicone coated fiberglass fabrics

    Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.



    Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.



Main applications:

1.Shipping, power generation, aerospace, marine
2.Foundry splash protection, welding defenders, motor vehicle industry

3.Insulation jackets, mattress, and pad

4.Fabric expansion joints

5.Fabric ductwork connector

6.Fire doors & Fire curtains

7.Welding/fire blankets

8.Other fire control systems



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1*2 ECG 75 1/2
Weft EC9 68 1*2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. SI244-1017
Coating Silicone rubber 2 sides
Weight 590 ± 25 g/m2 17.4 ± 0.74 oz/yd2 ASTM D3776-96
Thickness 0.45± 0.02 mm 0.018 ± 0.0007 inch ASTM D1777-96
Color Red
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)



0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 00.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 10.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 20.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 3

0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 4

Product Application

0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 5

Packaging & Shipping

0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 6

0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 7



0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 8

Exhibition & Example

0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 9

Contact Us

0.3 mm Thickness 400 g/sqm Weight 1.5 meter Width Silicone Coated Fiberglass Fabric Thermal Insulation Cloth 10
